This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Max load 1/200000,regardless of inside and outside,constant the resolution
Load sensor
Basic configuration:sensor(max load): one
Extended configuration:can add more sensors
Effective testing width
390mm(can be widened according to customer’s requirement )
Effective Tensile stroke
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement)
Range of testing speed
0.001~200mm/min ; 500mm/min (1000mm/min is option)
Accuracy of displacement measurement
Tolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured system(according to the requirements)
Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of
deformation :5mm,10mm,25mm
Accuracy of measured deformation
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation)
safety
Electronic-limit protection
Testing platform moving device
Fast /slow two speeds to control,can jog
Return back
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection
Overload 10%,automatic protection

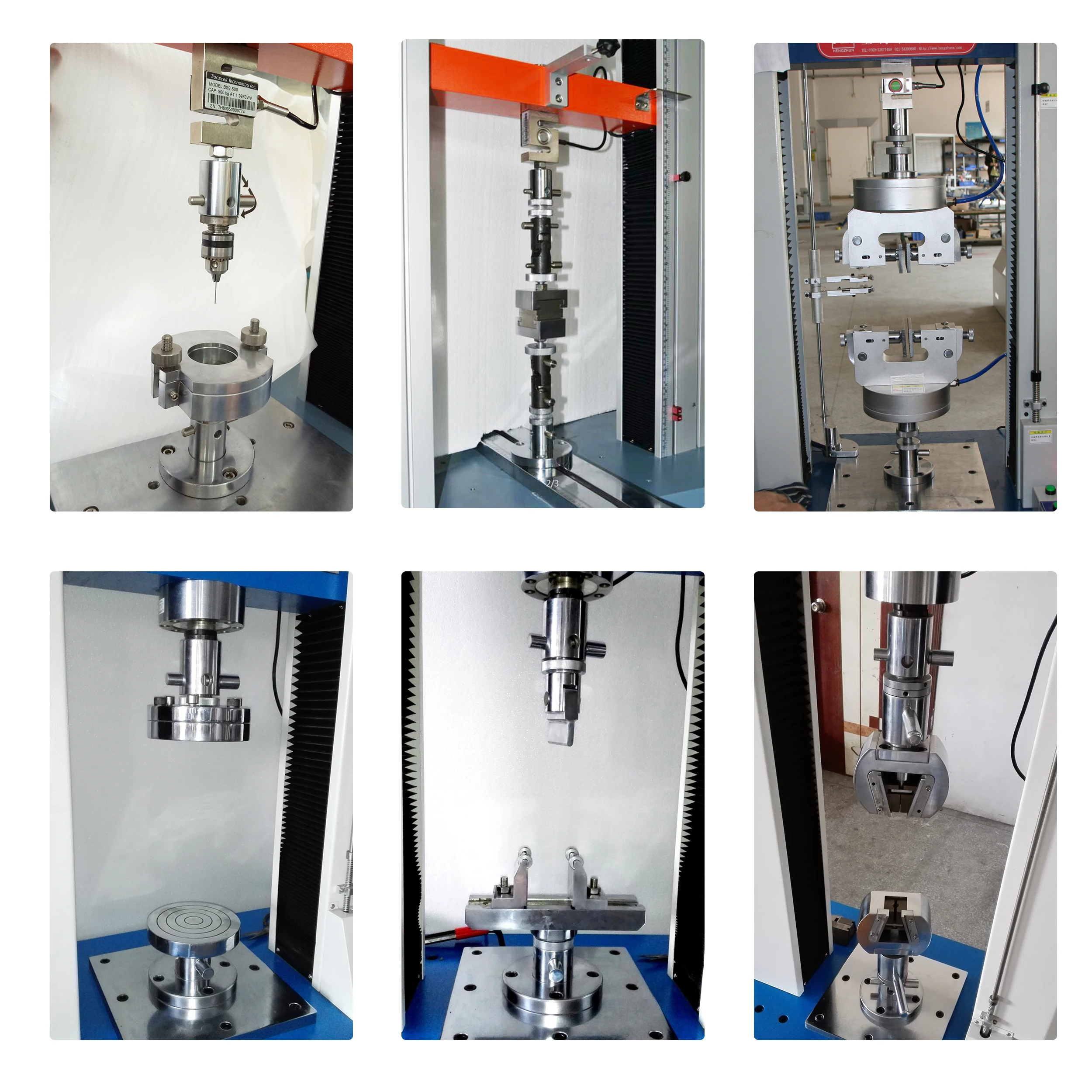

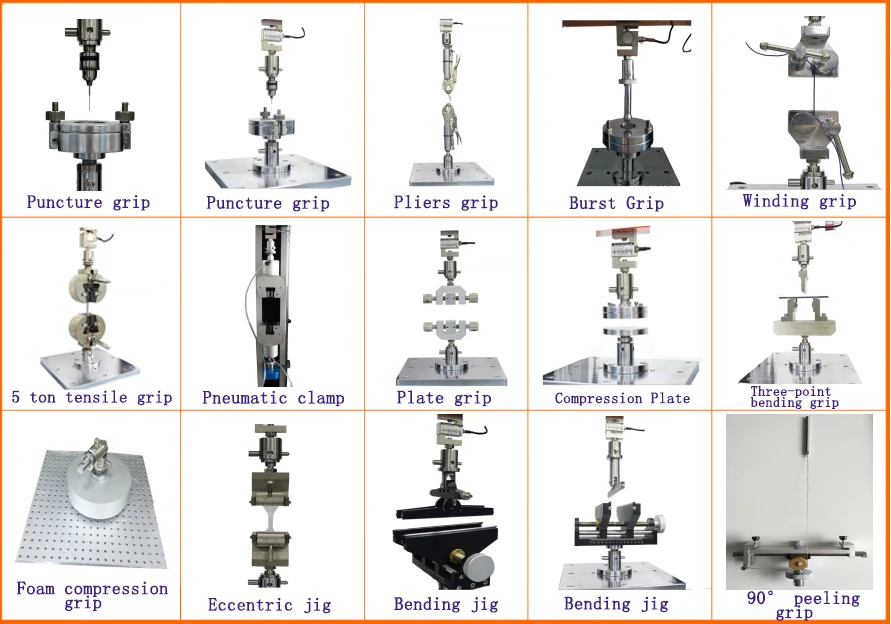

fixture
A set of tensile fixture
Machine size
80x55x220cm(length*width*height)

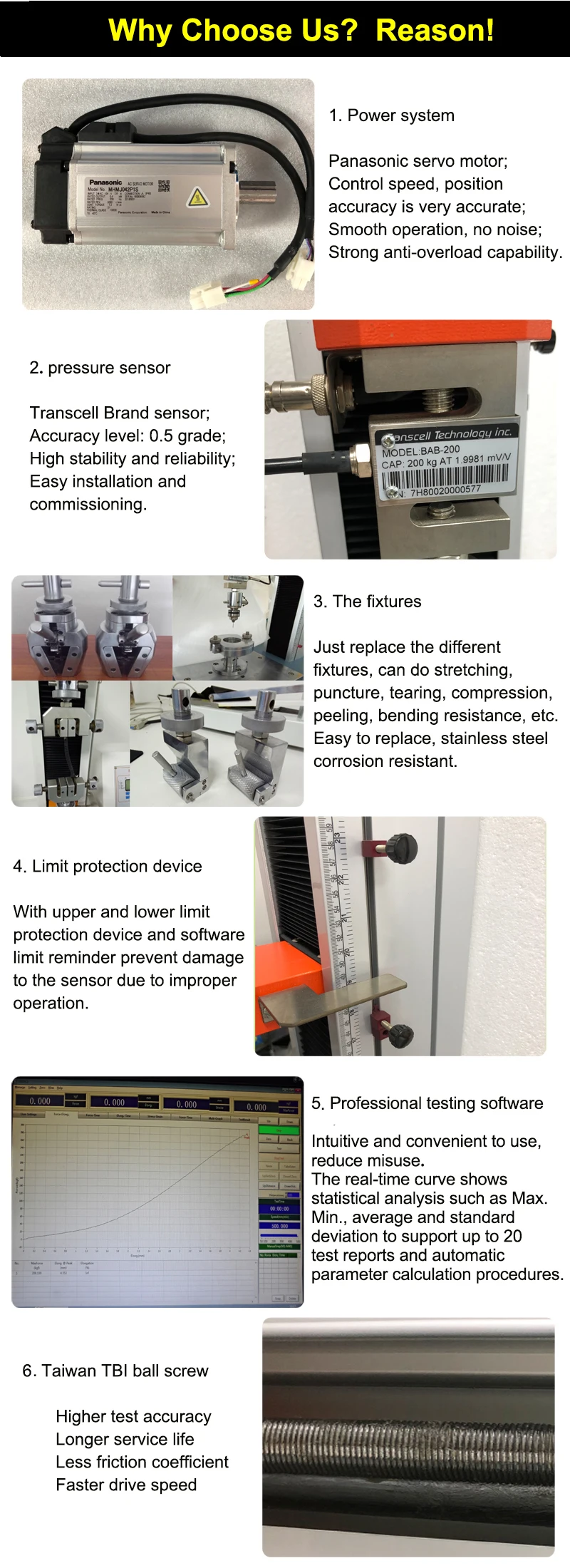

Power system
Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply
220V,50HZ,
Power
0.4KW(depending on different demand of force, using different motor)
Machine weight
(about)250 Kg
Units
Kg, N, LB, TON, can be exchanged.
Equipment summary:

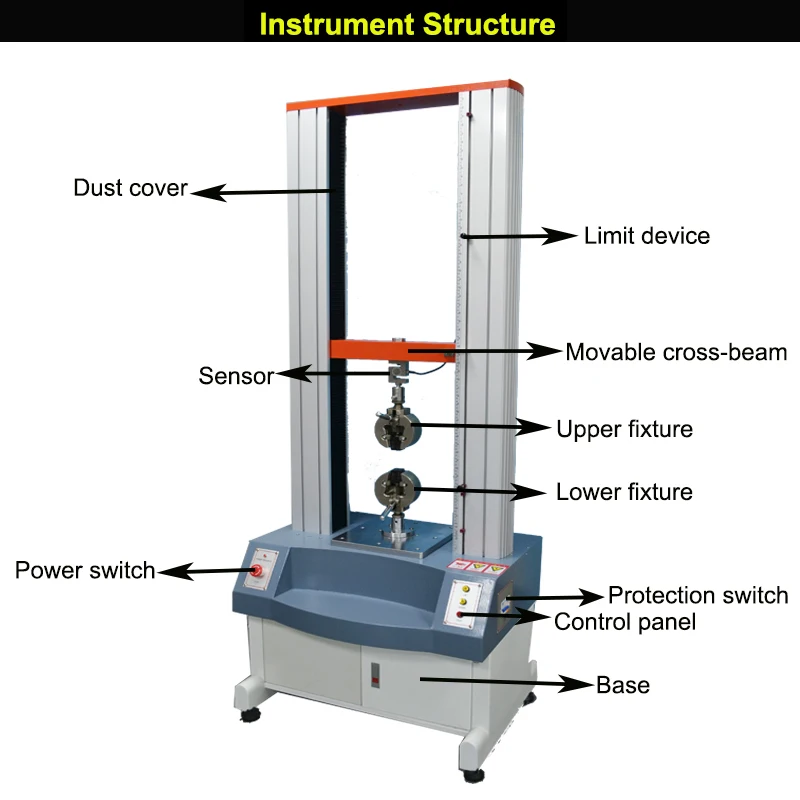

ZL-8001A Computer Servo Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2 ton.
3.items can be tested in theComputer servo testing machine
Common items: ( display data and calculation )
1.tensile stress
2.tensile strength
3.tensile strength
4.rate of elongation at break
5.fixed stress
6.rate of stress at break
7.stress strength
8.tear strength
9.the value of force at any point
10.rate of elongation at any point
11.pull-out strength
12.force of adhesion and the peak of force
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Software features:
1.The software description about Computer servo testing machine
A. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification.
B. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.
C. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)
D. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.
E. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.
F. Test results can be output in EXCEL format. G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.
H. Software has a capability that can output the before data.
We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.
Throughout its more than 18 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 108 countries these years,especially favored by European and American countries.
Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.
In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification. 2. What’s the delivery term? At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you. 3. Do you accept customization service? Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs. 4. Can we visit your factory before order? Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport. 5. Do you have customers of our country before?
Now our testing machines have been sold to more than 108 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on. 6. How about your warranty? Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service. 7. How about the packing for machine, is it safely protected during transportation? Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage. 8. What is the order process? Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service. 9. How to install and use the product? The product is shipped with an operating instructions and video of English version.
